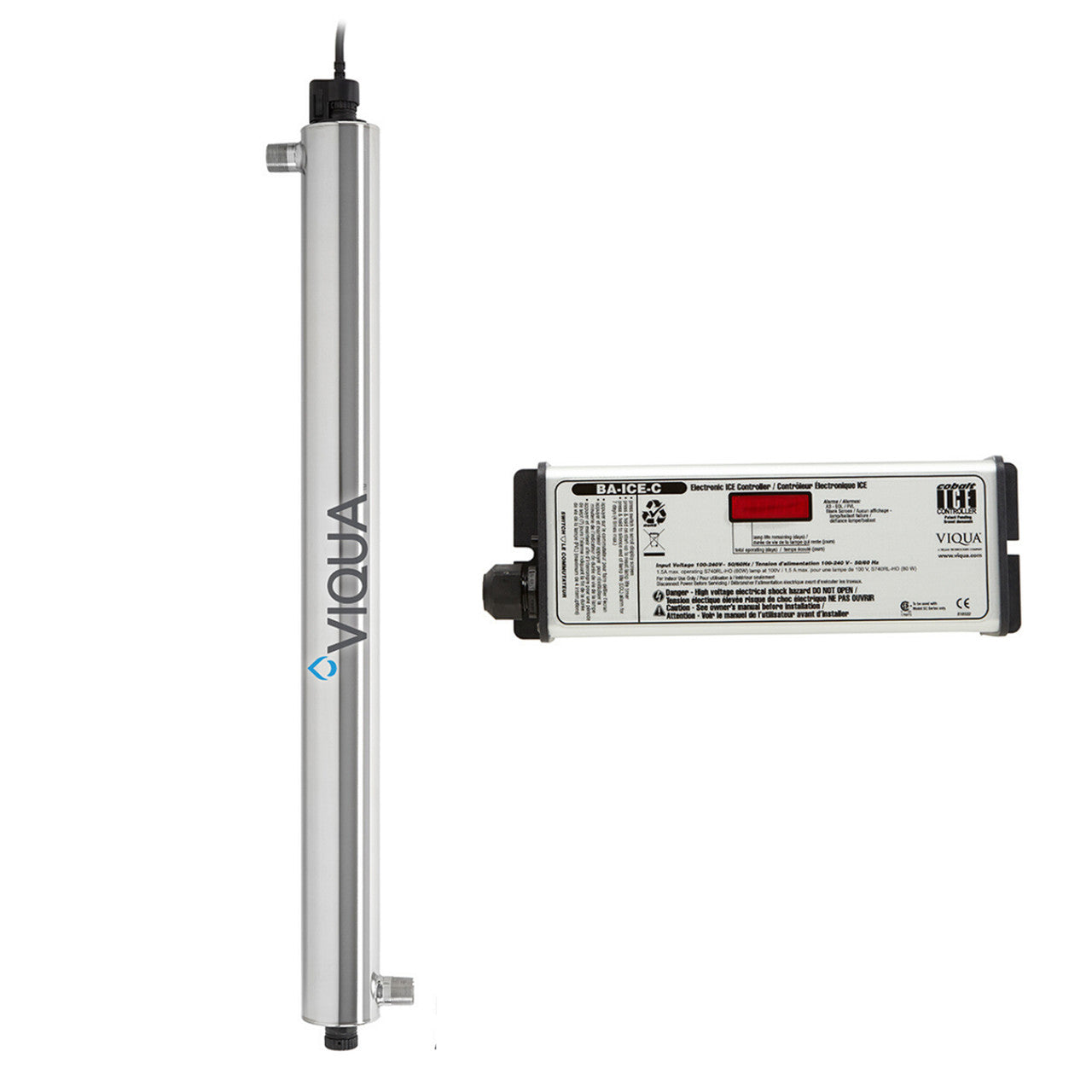

VIQUA VP950 UV System 34 GPM 1.5" MNPT
VIQUA VP950 UV System 34 GPM 1.5" MNPT
Description
The VIQUA VP950 system are high-efficiency, high-flow commercial UV treatment unit designed for use with 34 GPM flow rates. These are well-built, dependable systems that include a limited warranty on all components. Capable of 100-240V, 50-60Hz.
To request international electrical plug types “F” (Europe), “G” (UK), and “I” (Australia) be included with your system at no charge, please email customer support, after ordering.
- Flow Rate: 34 Gallons Per Minute
- Application: Point-of-Entry
- Power: 100-240V 50-60Hz 95W N. American Plug
- Overall Dimensions: 45" x 3.5"
- Inlet Dimensions: 1.5" MPT
- Outlet Dimensions: 1.5" MPT
Replacements & Add Ons
Helpful Info & Downloads
Q:
What flow rate is the VIQUA VP950 designed for?
A:
It is rated for up to 34 GPM under the manufacturer’s specified conditions. Size the system to peak simultaneous flow, not average daily use.
Q:
What plumbing and power does it require?
A:
It uses 1.5-inch male NPT connections and operates from 100–240 V, 50–60 Hz power unless the selected configuration states otherwise. Confirm bypass, drainage, and service clearance.
Q:
Does the VIQUA VP950 include UV output monitoring?
A:
No. The standard VP950 does not include the M-model UV sensor.
Q:
Where should the system be installed?
A:
Install it indoors in the orientation permitted by the manual, after appropriate sediment filtration and any other upstream treatment needed to keep water conditions within specification.
Q:
What routine maintenance is required?
A:
Replace the lamp on schedule, inspect and service the quartz sleeve and seals, and maintain upstream filters. Respond to controller alarms rather than relying on visible lamp glow.
Q:
Which service parts should I plan for?
A:
Plan for the S950RL-HO lamp, QSO-950 sleeve or QL-950 kit, seals, and controller service parts.
