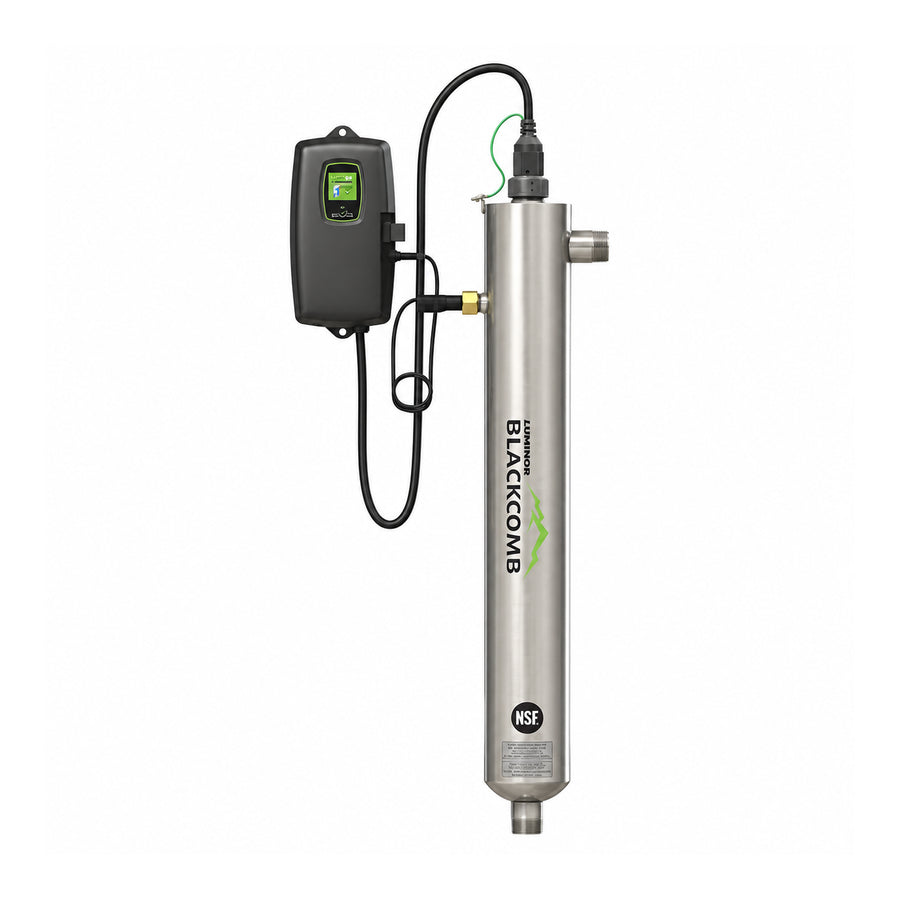

Luminor Blackcomb-HO 6.1 UV system with monitoring, retailer reference for LBH6-401A

UV system

LUMINOR BLACKCOMB-HO 6.1 (LBH6-401A) 18 GPM NSF Class A UV Replacement Lamp & Sleeve

The LUMINOR BLACKCOMB-HO 6.1 LBH6-401A is an NSF/ANSI 55 Class A UV disinfection system rated at 18 GPM (40 mJ/cm² at 70% UVT) with 1-1/2-inch MNPT connections, a 316L stainless steel chamber, integrated flow restrictor and UV sensor, and a color controller for continuous UV-intensity monitoring.

See the replacement schedule

Compatible parts

Everything that fits the Luminor BLACKCOMB-HO 6.1 (LBH6-401A)

Luminor Blackcomb-HO 6.1 UV system with monitoring, retailer reference for LBH6-401A
Free Shipping
Luminor
Luminor LBH6-401A Blackcomb-HO 6.1 UV System NSF Class A 18 GPM
$2535.29
NSF/ANSI 55 Class A validation
Continuous UV-intensity monitoring
Integrated flow restrictor
316L stainless steel chamber
Luminor RL-950HO High Output replacement UV lamp with lamp key for BLACKCOMB-HO LBH4-401, LBH5-401, LBH6-401 systems
Free Shipping
Luminor
Luminor RL-950HO Replacement UV Lamp for LBH4-401, LBH5-401, LBH6-401
(0)
$166.45
Includes Lamp Key (works for LUMINOR Branded Systems Only)
Fits 9 Luminor BLACKCOMB-HO "-401" system variants (standard, Class A, Class B, and low-UVT crossover)
Genuine Luminor OEM High Output lamp, not a generic replacement
Luminor RQ-950 replacement UV quartz sleeve for BLACKCOMB-HO LBH4-401, LBH5-401, LBH6-401 systems and HW, low-UVT, and TOC variants
Luminor
Luminor RQ-950 Sleeve for LBH4-401, LBH5-401, LBH6-401
(0)
$96.29
Use with LUMINOR BLACKCOMB LBH4-401, LBH5-401, LBH6-401 UV Systems
Fits 15 Luminor BLACKCOMB-HO "-401" system variants (standard, Class A, Class B, HW, low-UVT, and TOC)
Maintains your BLACKCOMB-HO system's certified UV output
Luminor RLQ - 950HO UV Lamp and Sleeve Kit for LBH4 - 401, LBH5 - 401, LBH6 - 401 RLQ-950HO - ESP Water
Free Shipping
Luminor
Luminor RLQ-950HO Lamp and Sleeve for LBH4-401, LBH5-401
(1)
$227.97
Includes Lamp Key (works for LUMINOR Branded Systems Only)
For all LUMINOR LBH4-401, LBH5-401, LBH6-401 UV systems
LUMINOR 320006 gland nut for BLACKCOMB UV water treatment systems
Luminor
Luminor 320006 Gland Nut for All Luminor Blackcomb UV Systems
(0)
$13.44
LUMINOR MOD-APP UV Concierge monitoring module for compatible BLACKCOMB UV systems
Free Shipping
Luminor
Luminor MOD-APP UV Concierge System Monitoring Application
(0)
$160.52
Luminor SHERPA wireless UV system status receiver
Luminor
Luminor MOD-SHERPA Wireless UV System Monitor for BLACKCOMB 5.1 and 6.1
$184.65
Remote LED indication of normal, caution and alarm conditions
Lost-connection indicator
One transmitter supports up to five receivers
Luminor brass-body ultrasonic UV flow meter
Free Shipping
Luminor
Luminor LFM-1.5 Ultrasonic UV Flow Meter 1-1/2-Inch NPT
$459.56
Real-time ultrasonic flow measurement
Enables lamp dimming during no-flow conditions on compatible controllers
Requires IEP connection and firmware 2.13 or later
Luminor UV temperature relief valve assembly
Free Shipping
Luminor
Luminor 130034 Temperature Relief Valve Kit 1-1/2-Inch FNPT
$413.60
Automatically releases a small amount of heated water to help cool the UV chamber
Helps manage heat buildup during extended no-flow periods
Includes 10 feet of drain line
Luminor 260004 North American IEC power cord
Luminor
Luminor 260004 IEC Power Cord North American 120V NEMA 5-15
$19.32
IEC equipment connection
Three-wire North American NEMA 5-15 plug
Luminor 300070 replacement O-ring for NSF-validated UV systems
Luminor
Luminor 300070 Replacement O-Ring for NSF-Validated UV Systems
$10.08
Replacement O-ring identified for NSF-validated Luminor UV systems
Order by exact part number 300070
Luminor replacement O-ring — shared reference image
Luminor
Luminor 310120 Replacement UV Sensor O-Ring
$3.36
Replacement seal for the UV sensor connection
Sensor sold separately
LUMINOR 310039 quartz sleeve spring for compatible BLACKCOMB UV systems
Luminor
Luminor 310039 Quartz Sleeve Spring for LUMINOR systems
(2)
$8.40

Replacement filter info

Your replacement schedule

Each replacement part of the Luminor BLACKCOMB-HO 6.1 (LBH6-401A), the exact part that fits it, and when to change it.

  1. UV lamp

    Part RL-950HO, Luminor RL-950HO Replacement UV Lamp for LBH4-401, LBH5-401, LBH6-401 $166.45

    Every 12 months

  2. Quartz sleeve

    Part RQ-950, Luminor RQ-950 Sleeve for LBH4-401, LBH5-401, LBH6-401 $96.29

    Every 2 years

  3. Kit: Lamp & sleeve kit

    Part RLQ-950HO, Luminor RLQ-950HO Lamp and Sleeve for LBH4-401, LBH5-401 $227.97

    Lamp and sleeve in one box
